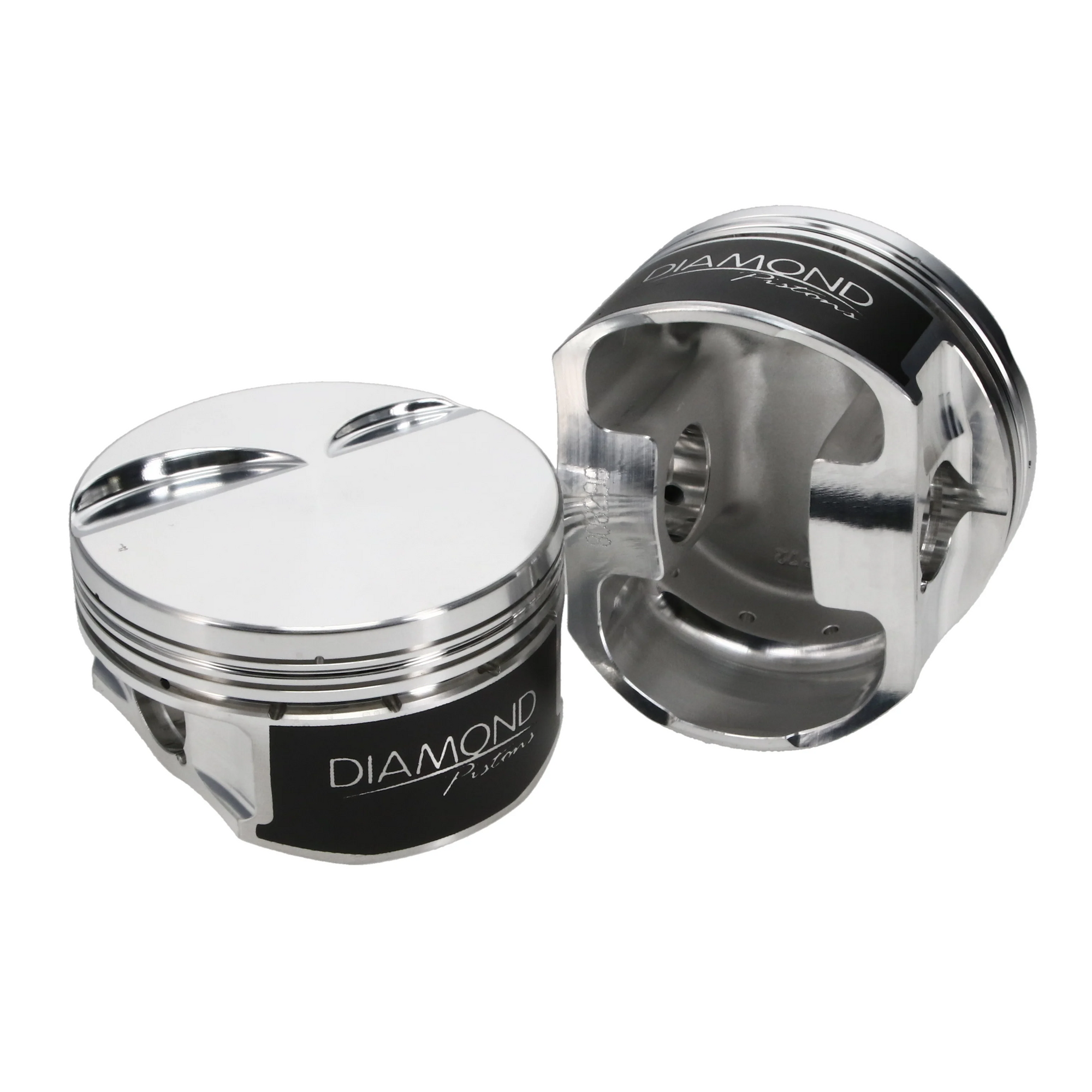

LM7 3.800B/1.304CD/Kit DIA11599-R1-8-H
Sold out
0 SEK
13 563 SEK
Sale 0%
Product type:
Pistons
Vendor:
Diamond Pistons
sku: DIA11599-R1-8-H
Quantity
In stock orders typically ship within 1 business day.
bac_1234BoreDiameter
3.800IN
CompressionHeight
1.304IN
PistonVolume
-2.00CC
RingSetPartNumber
09543800
TopCompressionRingThickness
1.00MM
SecondCompressionRingThickness
1.20MM
OilRingThickness
2.80MM
RingSetIncluded
Yes
OilRailSupportIncluded
No
WristPinPartNumber
H9272500225
WristPinOutsideDiameter
0.927IN
WristPinLength
2.500IN
WristPinRetainerPartNumber
015104-32
WristPinRetainerIncluded
Yes
PistonSeries
LM7
ProductType
EnginePistonKit
Stroke
3.622IN
RodLength
6.125IN
RingSetThickness
1.00MMx1.20MMx2.80MM
PistonQuantity
8
ForgingType
FullRound
CylinderQuantity
8
VPIntakeDepth
0.176IN
VPExhaustDepth
0.103IN
CompressionRatio
10.30
WristPinDimensions
0.927x2.500
| Bore Diameter |
3.800 IN |
|---|---|
| Compression Height |
1.304 IN |
| Piston Volume |
-2.00 CC |
| Ring Set Part Number |
09543800 |
| Top Compression Ring Thickness |
1.00 MM |
| Second Compression Ring Thickness |
1.20 MM |
| Oil Ring Thickness |
2.80 MM |
| Ring Set Included |
Yes |
| Oil Rail Support Included |
No |
| Wrist Pin Part Number |
H9272500225 |
| Wrist Pin Outside Diameter |
0.927 IN |
| Wrist Pin Length |
2.500 IN |
| Wrist Pin Retainer Part Number |
015104-32 |
| Wrist Pin Retainer Included |
Yes |
| Piston Series |
LM7 |
| Product Type |
Engine Piston Kit |
| Stroke |
3.622 IN |
| Rod Length |
6.125 IN |
| Ring Set Thickness |
1.00 MM x 1.20 MM x 2.80 MM |
| Piston Quantity |
8 |
| Forging Type |
Full Round |
| Cylinder Quantity |
8 |
| VP Intake Depth |
0.176 IN |
| VP Exhaust Depth |
0.103 IN |
| Compression Ratio |
10.30 |
| Wrist Pin Dimensions |
0.927 x 2.500 |
