Dart Ls Next Iron Ls Block, 9.240 Deck, 4.000 Bore, Std Cam, Std LS Mains

Sold out
0 SEK 54 106 SEK
Sale 0%
Product type:  Engine Blocks
Vendor:  Blenco Speedshop
sku: DRT31837111
|
External Stock: Michigan: 0
Quantity
Klarna PayPal Visa Mastercard Apple Pay

In stock orders typically ship within 1 business day.

bac_1234DartDartLsNextIronLsBlock,9.240Deck,4.000Bore,StdCam,StdLSMainsisaLSNextironLSblockforLSenginebuilds.Part31837111featuresa9.240in.deckheight,4.000in.bore,astandardcamlocation,steel4-boltmaincaps,StdLSmainjournalsand220BHNCastIron. SKU:DRT31837111 Partnumber:31837111 Deckheight:9.240" Boresize:4.000" Camlocation:Standardcam Maincaps:Steel4-boltmaincaps Mainjournals:StdLS Skirtlength:Short Material:220BHNCastIron Rearseal:StockLS Catalogshortdescription:SBCIr/BlkLSN9.240/4.000LSTheLSNextironplatformimprovesonthefactoryLSlayoutwithprioritymainoiling,thickdecks,siameseboresandextracrankshaftclearanceforperformancebuilds.Itisconfiguredwithashortskirtraceblockdesign,stockLSrearsealprovision,thickcylinderwallsandtheextraclearanceexpectedforseriousperformancecombinations.LSNextblockwith9.240deck,4.000bore,standardcamlocation,StdLSmainsandshortconfiguration.

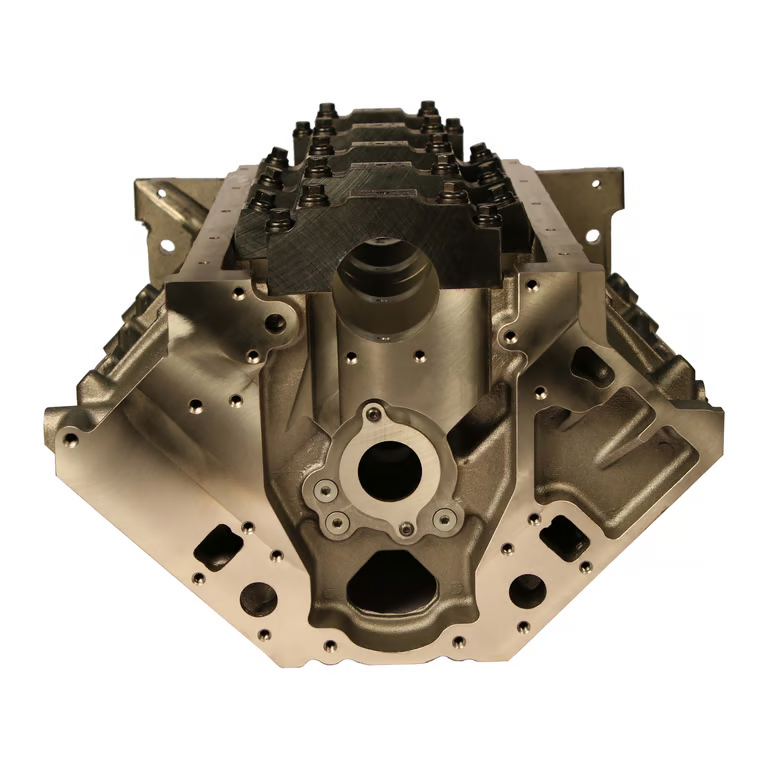

Dart Dart Ls Next Iron Ls Block, 9.240 Deck, 4.000 Bore, Std Cam, Std LS Mains is a LS Next iron LS block for LS engine builds. Part 31837111 features a 9.240 in. deck height, 4.000 in. bore, a standard cam location, steel 4-bolt main caps, Std LS main journals and 220 BHN Cast Iron.

  • SKU: DRT31837111
  • Part number: 31837111
  • Deck height: 9.240"
  • Bore size: 4.000"
  • Cam location: Standard cam
  • Main caps: Steel 4-bolt main caps
  • Main journals: Std LS
  • Skirt length: Short
  • Material: 220 BHN Cast Iron
  • Rear seal: Stock LS

Catalog short description: SBC Ir/Blk LSN 9.240/4.000 LS

The LS Next iron platform improves on the factory LS layout with priority main oiling, thick decks, siamese bores and extra crankshaft clearance for performance builds. It is configured with a short skirt race block design, stock LS rear seal provision, thick cylinder walls and the extra clearance expected for serious performance combinations.

LS Next block with 9.240 deck, 4.000 bore, standard cam location, Std LS mains and short configuration.
