Dart Ls Next Aluminum Ls Block, 9.750 Deck, 4.000 Bore, Raised .388 Cam, Std LS Mains

Sold out
0 SEK 78 561 SEK
Sale 0%
Product type:  Engine Blocks
Vendor:  Dart
sku: DRT31947142
Quantity
Klarna PayPal Visa Mastercard Apple Pay

In stock orders typically ship within 1 business day.

bac_1234DartDartLsNextAluminumLsBlock,9.750Deck,4.000Bore,Raised.388Cam,StdLSMainsisaLSNextaluminumLSblockforLSenginebuilds.Part31947142featuresa9.750in.deckheight,4.000in.bore,araised.388in.camlocation,steel4-boltmaincaps,StdLSmainjournalsandRMRCastAluminumAlloy. SKU:DRT31947142 Partnumber:31947142 Deckheight:9.750" Boresize:4.000" Camlocation:Raised.388cam Maincaps:Steel4-boltmaincaps Mainjournals:StdLS Skirtlength:Long(stdls) Material:RMRCastAluminumAlloy Rearseal:StockLS Catalogshortdescription:SBCAL/BlkLSNSkirt9.750/4.000LSRCTheLSNextaluminumplatformkeepstheclean-slateDartarchitecturewithprioritymainoiling,thickdecksandextraclearanceforstrokercombinations.Itisconfiguredwithalongskirt/fullyskirteddesign,stockLSrearsealprovision,thickcylinderwallsandtheextraclearanceexpectedforseriousperformancecombinations.LSNextblockwith9.750deck,4.000bore,raised.388camlocation,StdLSmainsandlong(stdls)configuration.

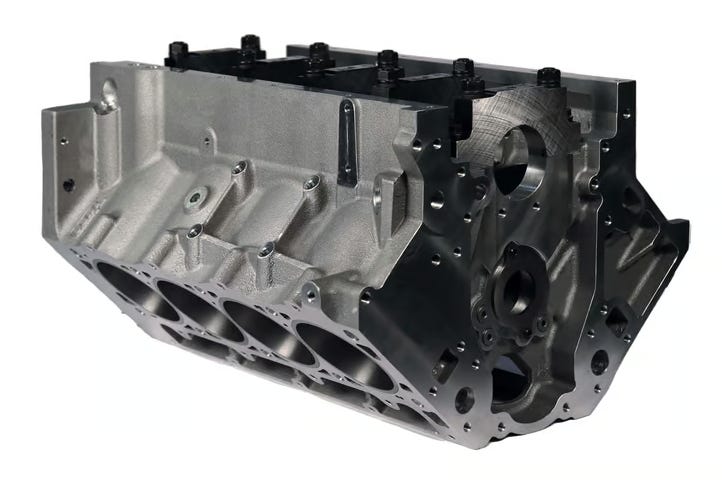

Dart Dart Ls Next Aluminum Ls Block, 9.750 Deck, 4.000 Bore, Raised .388 Cam, Std LS Mains is a LS Next aluminum LS block for LS engine builds. Part 31947142 features a 9.750 in. deck height, 4.000 in. bore, a raised .388 in. cam location, steel 4-bolt main caps, Std LS main journals and RMR Cast Aluminum Alloy.

  • SKU: DRT31947142
  • Part number: 31947142
  • Deck height: 9.750"
  • Bore size: 4.000"
  • Cam location: Raised .388 cam
  • Main caps: Steel 4-bolt main caps
  • Main journals: Std LS
  • Skirt length: Long (std ls)
  • Material: RMR Cast Aluminum Alloy
  • Rear seal: Stock LS

Catalog short description: SBC AL/Blk LSN Skirt 9.750/4.000 LS RC

The LS Next aluminum platform keeps the clean-slate Dart architecture with priority main oiling, thick decks and extra clearance for stroker combinations. It is configured with a long skirt / fully skirted design, stock LS rear seal provision, thick cylinder walls and the extra clearance expected for serious performance combinations.

LS Next block with 9.750 deck, 4.000 bore, raised .388 cam location, Std LS mains and long (std ls) configuration.
