Home All Products 2901-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS FX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.927" Comp Height: 1.115"
transparent image
DSSK3-2901-3810
DSSK3-2901-3810
Home All Products 2901-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS FX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.927" Comp Height: 1.115"

2901-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS FX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.927" Comp Height: 1.115"

Sold out
17,546 SEK Incl. Swedish VAT 17,547 SEK Incl. Swedish VAT
Sale 0%
14,037 SEK Excl. VAT
Product type:  Pistons
Vendor:  DSS Racing Pistons
sku: DSSK3-2901-3810
Quantity
Klarna PayPal Visa Mastercard Apple Pay

In stock orders typically ship within 1 business day.

bac_1234EngineBrand:Chevy EngineFamily:ChevyLS EngineSize:4.8-5.3-LS1-LS6-Stroker WithRings CylinderBoreSize:3.810in,96.698mm RingWidth:1.2/1.2/3MM CompressionHeight:1.115" PinDiameter:0.927" ConnectingRodLength:6.125" CrankshaftStroke:4.000" PistonSeries:FXSeries Alloy:2618Alloy LateralGasPorts ForcedPinOiling XR.225"Wallpistonwristpins CylinderHead:LS1,LS2,LS3andLS7 TDCAssemblyHeight:9.240"(StockLS)

Engine Brand: Chevy

Engine Family: Chevy LS

Engine Size: 4.8 - 5.3 - LS1 - LS6 - Stroker

With Rings

Cylinder Bore Size: 3.810 in , 96.698 mm

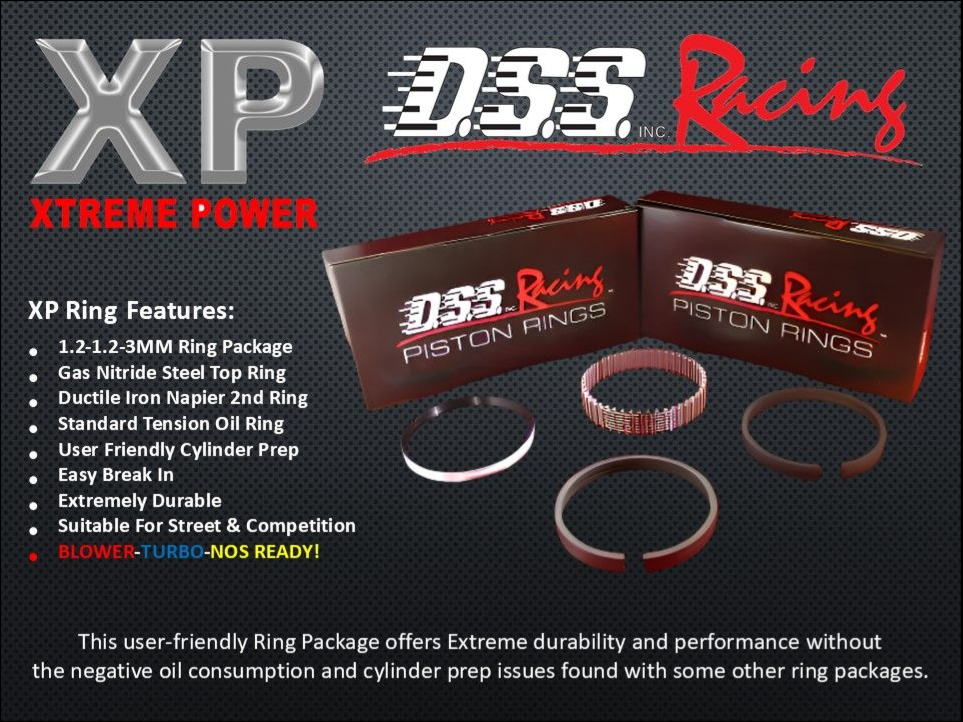

Ring Width: 1.2/1.2/3MM

Compression Height: 1.115"

Pin Diameter: 0.927"

Connecting Rod Length: 6.125"

Crankshaft Stroke: 4.000"

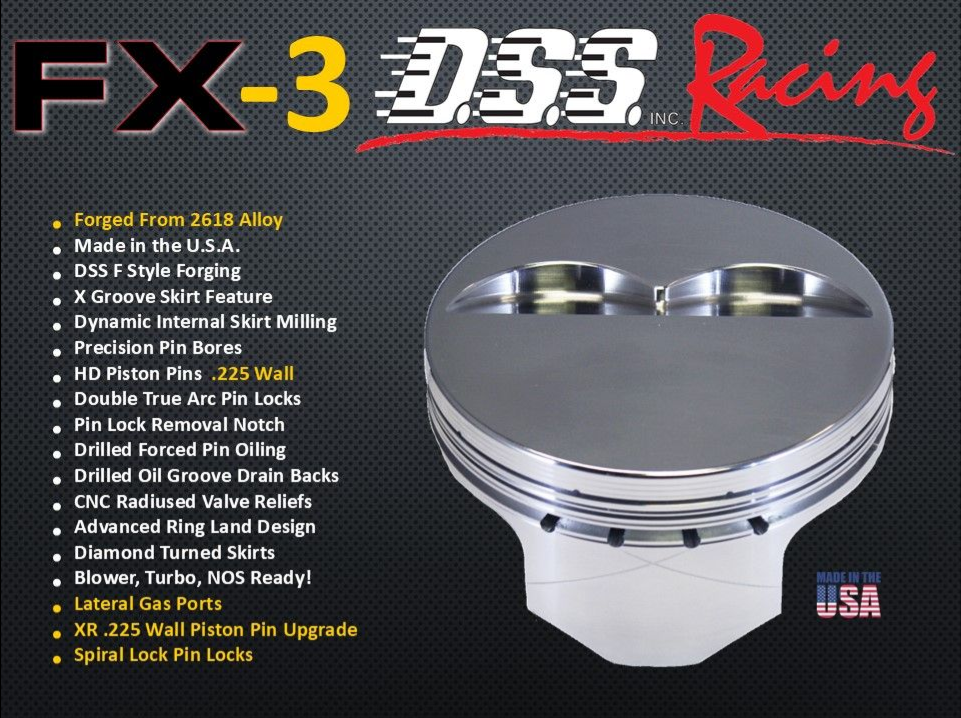

Piston Series: FX Series

Alloy: 2618 Alloy

Lateral Gas Ports

Forced Pin Oiling

XR .225" Wall piston wristpins

Cylinder Head: LS1,LS2,LS3 and LS7

TDC Assembly Height: 9.240" (Stock LS)



NOTE! This item is ordered on demand from USA. The price shown is preliminary. If the supplier's price or exchange rate has changed, we will contact you before the order becomes binding.
